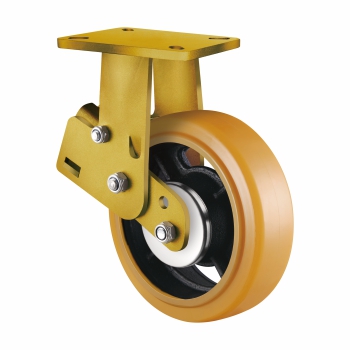

Industrial caster-Shocking proof
Products
ISP-004-xxxR

Hits:722

ISP-004-xxxR
Rigid caster Wheel
diam		 Width
of tyre		 Plate
size		 Hole
spacing		 Bolt hole
diam
 Overall
height		 Load
capacity(kg)
ISP-004-125R 125 50 159x114 135/125x86/62 11.2 192 300
ISP-004-150R 150 50 159x114 135/125x86/62 11.2 205 350
ISP-004-200R 200 50 159x114 135/125x86/62 11.2 250 400













Standard :American standard
Size:mm
Tread :Polyurethane
 Centre:Cast iron
Bearing :Double ball bearing with thread guards
Fixing : Top plate rigid
Match:1.Extra hard PU wheel available;
             2.Painting housing available.


Rigid caster Wheel
diam		 Width
of tyre		 Plate
size		 Hole
spacing		 Bolt hole
diam
 Overall
height		 Load
capacity(kg)
ISP-004-125R-1 125 50 140x110 111/98.5x84/71.5 11.2 192 300
ISP-004-150R-1 150 50 140x110 111/98.5x84/71.5 11.2 205 350
ISP-004-200R-1 200 50 140x110 111/98.5x84/71.5 11.2 250 400













Standard :European standard
Size:mm
Tread :Polyurethane
Centre:Cast iron
Bearing :Double ball bearing with thread guards
Fixing : Top plate rigid
Match:1.Extra hard PU wheel available;
             2.Painting housing available.
